在上一章我们分析了SpingBoot启动流程中实例化SpingApplication的过程。
return new SpringApplication(primarySources).run(args);
这篇文章咱么说下run()方法开始之后都做了那些事情。
继续往下跟着源码进入到run()这个是比较核心的一个方法了
public ConfigurableApplicationContext run(String... args) {
StopWatch stopWatch = new StopWatch();
// 计时器开始
stopWatch.start();
// 创建启动上下文对象
DefaultBootstrapContext bootstrapContext = createBootstrapContext();
ConfigurableApplicationContext context = null;
// 配置Handless模式，是在缺少显示屏、键盘或鼠标时的系统配置
// 默认为true
configureHeadlessProperty();
//获取并启动监听器
SpringApplicationRunListeners listeners = getRunListeners(args);
// 启动监听器
listeners.starting(bootstrapContext, this.mainApplicationClass);
try {
ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
// 准备环境
ConfigurableEnvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);
// 忽略配置的bean
configureIgnoreBeanInfo(environment);
// 打印banner,就是启动的时候在控制台的spring图案
Banner printedBanner = printBanner(environment);
// 创建容器
context = createApplicationContext();
context.setApplicationStartup(this.applicationStartup);
// 准备应用上下文(spring容器前置处理)
prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner);
// 刷新容器
refreshContext(context);
// 刷新容器后的扩展接口(spring容器后置处理)
afterRefresh(context, applicationArguments);
// 结束计时器并打印，这就是我们启动后console的显示的时间
stopWatch.stop();
if (this.logStartupInfo) {
new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
}
// 发布监听应用上下文启动完成（发出启动结束事件）
listeners.started(context);
// 执行runner
callRunners(context, applicationArguments);
}
catch (Throwable ex) {
// 异常处理，如果run过程发生异常
handleRunFailure(context, ex, listeners);
throw new IllegalStateException(ex);
}
try {
// 监听应用上下文运行中
listeners.running(context);
}
catch (Throwable ex) {
handleRunFailure(context, ex, null);
throw new IllegalStateException(ex);
}
// 返回最终构建的容器对象
return context;
}
接下来就对上面的关键步骤一一解释
1. 获取所有的监听器
这段代码我们比较熟悉了，上一篇咱么详细介绍过，它的主要作用就是去META-INFO/spring.factories 中加载配置SpringApplicationRunListener的监听器如下
显然只有一个事件发布监听器类，拿到了EventPublishingRunListener启动事件发布监听器，下一步就是开始启动了listeners.starting（）;我们往下跟源码看
@Override
public void starting(ConfigurableBootstrapContext bootstrapContext) {
this.initialMulticaster
.multicastEvent(new ApplicationStartingEvent(bootstrapContext, this.application, this.args));
}启动的时候实际上是又创建了一个ApplicationStartingEvent对象，其实就是监听应用启动事件。
其中 initialMulticaster是一个SimpleApplicationEventMuticaster
public void multicastEvent(ApplicationEvent event, @Nullable ResolvableType eventType) {
ResolvableType type = eventType != null ? eventType : this.resolveDefaultEventType(event);
// 获取线程池，为每个监听事件创建一个线程
Executor executor = this.getTaskExecutor();
// 根据ApplicationStartingEvent事件类型找到对应的监听器，并迭代
Iterator var5 = this.getApplicationListeners(event, type).iterator();
while(var5.hasNext()) {
ApplicationListener<?> listener = (ApplicationListener)var5.next();
if (executor != null) {
//
executor.execute(() -> {
this.invokeListener(listener, event);
});
} else {
this.invokeListener(listener, event);
}
}
}2.准备环境
ConfigurableEnvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);
private ConfigurableEnvironment prepareEnvironment(SpringApplicationRunListeners listeners,
DefaultBootstrapContext bootstrapContext, ApplicationArguments applicationArguments) {
// Create and configure the environment
// 这里我们加入了web依赖所以是一个servlet容器
ConfigurableEnvironment environment = getOrCreateEnvironment();
// 配置环境
configureEnvironment(environment, applicationArguments.getSourceArgs());
// 环境准备完成
ConfigurationPropertySources.attach(environment);
listeners.environmentPrepared(bootstrapContext, environment);
DefaultPropertiesPropertySource.moveToEnd(environment);
configureAdditionalProfiles(environment);
bindToSpringApplication(environment);
if (!this.isCustomEnvironment) {
environment = new EnvironmentConverter(getClassLoader()).convertEnvironmentIfNecessary(environment,
deduceEnvironmentClass());
}
ConfigurationPropertySources.attach(environment);
return environment;
}由于我们是添加了web的依赖 getOrCreateEnvironment（）返回的是一个standardservletEnviroment 标准的servlet环境
2.1 配置环境
protected void configureEnvironment(ConfigurableEnvironment environment, String[] args) {
if (this.addConversionService) {
// 嵌入式的转换器
ConversionService conversionService = ApplicationConversionService.getSharedInstance();
environment.setConversionService((ConfigurableConversionService) conversionService);
}
// 配置属性资源文件
configurePropertySources(environment, args);
// 配置文件
configureProfiles(environment, args);
}应用嵌入的转换器ApplicationConversionService
public static void configure(FormatterRegistry registry) {
DefaultConversionService.addDefaultConverters(registry);
DefaultFormattingConversionService.addDefaultFormatters(registry);
// 格式转换
addApplicationFormatters(registry);
// 类型转换
addApplicationConverters(registry);
}
===============格式转换=================
public static void addApplicationFormatters(FormatterRegistry registry) {
registry.addFormatter(new CharArrayFormatter());
registry.addFormatter(new InetAddressFormatter());
registry.addFormatter(new IsoOffsetFormatter());
}
========================类型转换===================
public static void addApplicationConverters(ConverterRegistry registry) {
addDelimitedStringConverters(registry);
registry.addConverter(new StringToDurationConverter());
registry.addConverter(new DurationToStringConverter());
registry.addConverter(new NumberToDurationConverter());
registry.addConverter(new DurationToNumberConverter());
registry.addConverter(new StringToPeriodConverter());
registry.addConverter(new PeriodToStringConverter());
registry.addConverter(new NumberToPeriodConverter());
registry.addConverter(new StringToDataSizeConverter());
registry.addConverter(new NumberToDataSizeConverter());
registry.addConverter(new StringToFileConverter());
registry.addConverter(new InputStreamSourceToByteArrayConverter());
registry.addConverterFactory(new LenientStringToEnumConverterFactory());
registry.addConverterFactory(new LenientBooleanToEnumConverterFactory());
if (registry instanceof ConversionService) {
addApplicationConverters(registry, (ConversionService) registry);
}
}
2.2 环境准备完成
同上面启动监听事件，这次的环境准备也是同样的代码
@Override public void environmentPrepared(ConfigurableBootstrapContext bootstrapContext, ConfigurableEnvironment environment) { this.initialMulticaster.multicastEvent( // 创建一个应用环境准备事件对象 new ApplicationEnvironmentPreparedEvent(bootstrapContext, this.application, this.args, environment)); }debug进去之后代码跟AppLicationstrigevent 事件对象是一样的。不再赘述。
不过这里是7个监听器对象3.配置忽略的bean
configureIgnoreBeanInfo(environment);4.打印banner
这是SpringBoot默认的启动时的图标
Banner printedBanner = printBanner(environment);
这个是可以自定义的，也可以是图篇或是文本文件中的图形5.创建容器
紧接着上一篇，接下来就是创建容器
protected ConfigurableApplicationContext createApplicationContext() { return this.applicationContextFactory.create(this.webApplicationType); }6.准备应用上下文
private void prepareContext(DefaultBootstrapContext bootstrapContext, ConfigurableApplicationContext context, ConfigurableEnvironment environment, SpringApplicationRunListeners listeners, ApplicationArguments applicationArguments, Banner printedBanner) { // 设置环境参数 context.setEnvironment(environment); // 设置后处理应用上下文 postProcessApplicationContext(context); //把从spring.factories中加载的org.springframework.bt.context.ConfigurationwarningsApplicationContextIitiaLizer，进行初始化操作 applyInitializers(context); //EventPubLishingRunListener发布应用上下文事件 listeners.contextPrepared(context); // 打印启动日志 bootstrapContext.close(context); if (this.logStartupInfo) { logStartupInfo(context.getParent() == null); logStartupProfileInfo(context); } // Add boot specific singleton beans
ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
beanFactory.registerSingleton("springApplicationArguments", applicationArguments);
if (printedBanner != null) {
//注册一个字是springAppLicationArguments单例的bean
beanFactory.registerSingleton("springBootBanner", printedBanner);
}
if (beanFactory instanceof DefaultListableBeanFactory) {
((DefaultListableBeanFactory) beanFactory)
.setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
}
if (this.lazyInitialization) {
context.addBeanFactoryPostProcessor(new LazyInitializationBeanFactoryPostProcessor());
}
// Load the sources 获取所有资源
Set<Object> sources = getAllSources();
Assert.notEmpty(sources, "Sources must not be empty");
// 创建BeanDefinitionLoader加载器加载注册所有的资源
load(context, sources.toArray(new Object[0]));
// 同之前，发布应用上下文 加载事件
listeners.contextLoaded(context);
}### 7.刷新应用上下文
>刷新应用上下文就进入了spring的源码了public void refresh() throws BeansException, IllegalStateException {
synchronized(this.startupShutdownMonitor) {
StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");
// Prepare this context for refreshing.
//准备刷新上下文
this.prepareRefresh();
// Tetl the subclass to refresh the internal bean facto
// 通知子类刷新内部工厂
ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
// 准备Bean工厂
this.prepareBeanFactory(beanFactory);
try {
// Allows post-processing of the bean factory in contex t subc lasses.
// 允许在上下文子类中对bean工厂进行后处理。
// Invoke factory processors registered as beans in the context,
this.postProcessBeanFactory(beanFactory);
StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
this.invokeBeanFactoryPostProcessors(beanFactory);
// 注册后置处理器。
this.registerBeanPostProcessors(beanFactory);
beanPostProcess.end();
// 初始化信息源
this.initMessageSource();
// 初始化上下文事件发布器
this.initApplicationEventMulticaster();
// 初始化其他自定义bean

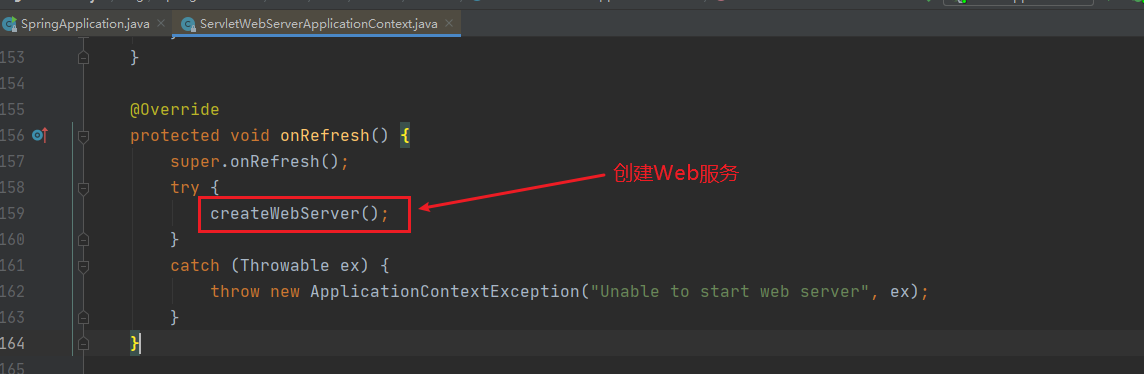

this.onRefresh();
// 注册监听器
this.registerListeners();
this.finishBeanFactoryInitialization(beanFactory);
//完成刷新，清缓存，初始化生命周期，事件发布等
this.finishRefresh();
} catch (BeansException var10) {
if (this.logger.isWarnEnabled()) {
this.logger.warn("Exception encountered during context initialization - cancelling refresh attempt: " + var10);
}
// 销毁bean
this.destroyBeans();
// Reset 'active'flag.
this.cancelRefresh(var10);
throw var10;
} finally {
this.resetCommonCaches();
contextRefresh.end();
}
}

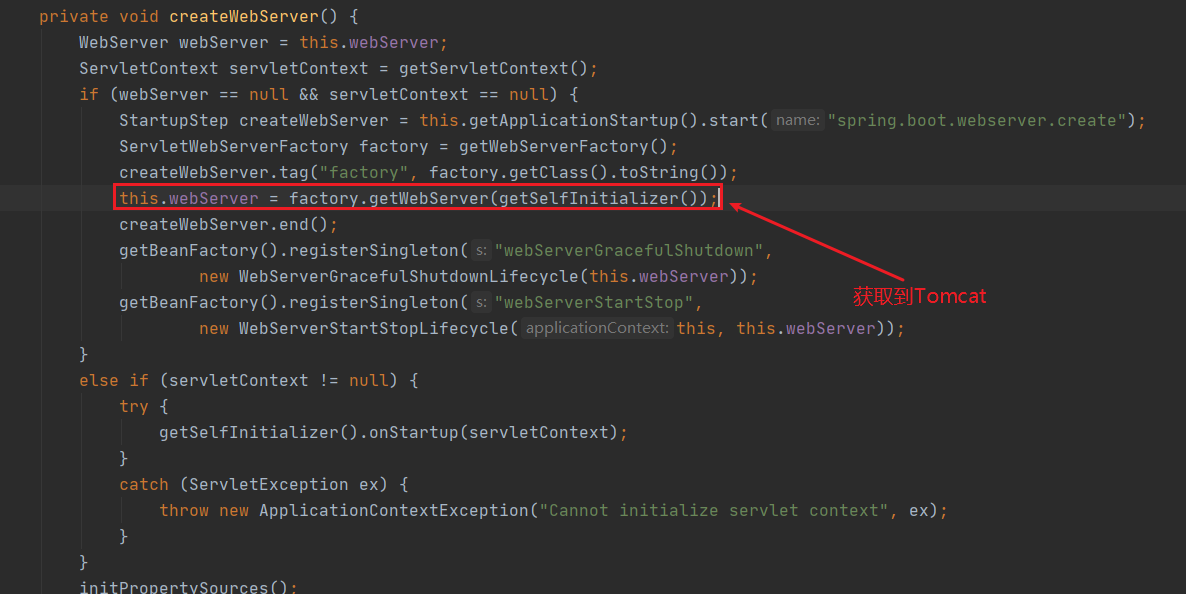

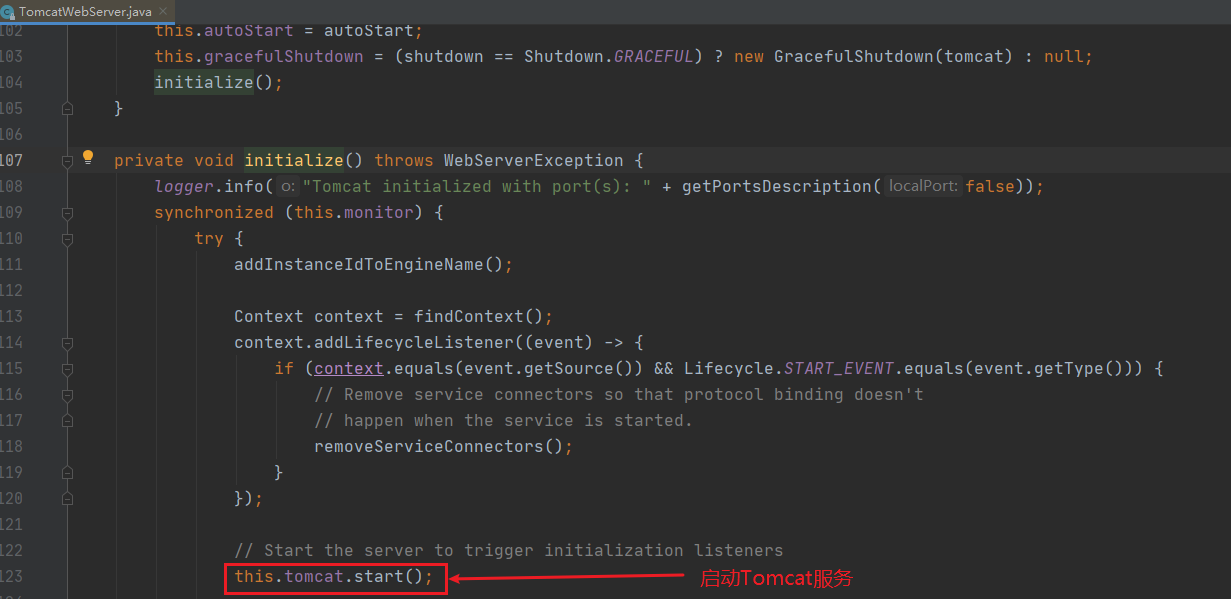

}刷新的代码有点深，也是在这时创建了Tomcat对象，这也是SpringBoot** 一键启动**web工程的关键
创建了Tomcat对象，并设置参数@Override
public WebServer getWebServer(ServletContextInitializer... initializers) {
if (this.disableMBeanRegistry) {
Registry.disableRegistry();
}
Tomcat tomcat = new Tomcat();
File baseDir = (this.baseDirectory != null) ? this.baseDirectory : createTempDir("tomcat");
tomcat.setBaseDir(baseDir.getAbsolutePath());
Connector connector = new Connector(this.protocol);
connector.setThrowOnFailure(true);
tomcat.getService().addConnector(connector);
customizeConnector(connector);
tomcat.setConnector(connector);
tomcat.getHost().setAutoDeploy(false);
configureEngine(tomcat.getEngine());
for (Connector additionalConnector : this.additionalTomcatConnectors) {
tomcat.getService().addConnector(additionalConnector);
}
prepareContext(tomcat.getHost(), initializers);
// 返回TomcatWebServer服务
return getTomcatWebServer(tomcat);
}
### 8.刷新后处理
>afterReftesh(); //是个一空实现，留着后期扩展/**
* Called after the context has been refreshed.
* @param context the application context
* @param args the application arguments
*/
protected void afterRefresh(ConfigurableApplicationContext context, ApplicationArguments args) {
}### 9.发布监听应用启动事件@Override
public void started(ConfigurableApplicationContext context) {
context.publishEvent(new ApplicationStartedEvent(this.application, this.args, context));
AvailabilityChangeEvent.publish(context, LivenessState.CORRECT);
}>这里是调用context.publishEvent（）方法，发布应用启动事件ApplicationStartedEvent.
### 10.执行Runner
>获取所有的ApplicationRuner和CommandLineRunner来初始化一些参数，callRuner（是一个回调函数)private void callRunners(ApplicationContext context, ApplicationArguments args) {
List<Object> runners = new ArrayList<>();
runners.addAll(context.getBeansOfType(ApplicationRunner.class).values());
runners.addAll(context.getBeansOfType(CommandLineRunner.class).values());
AnnotationAwareOrderComparator.sort(runners);
for (Object runner : new LinkedHashSet<>(runners)) {
if (runner instanceof ApplicationRunner) {
callRunner((ApplicationRunner) runner, args);
}
if (runner instanceof CommandLineRunner) {
callRunner((CommandLineRunner) runner, args);
}
}
}### 11.发布上下文准备完成的事件
listeners.running(context);@Override
public void running(ConfigurableApplicationContext context) {
context.publishEvent(new ApplicationReadyEvent(this.application, this.args, context));
AvailabilityChangeEvent.publish(context, ReadinessState.ACCEPTING_TRAFFIC);
}
这段代码看上去似成相识，前面有很多类似的代码，不同的是这里上下文准备完成之后发布了一个ApplicationReadyEvent事件，声明一下应用上下文准备完成。
小结
这篇主要是介绍了SpringBoot启动过程中run（）的这个过程。从中我们也可以发现一些非常好的编码习惯，大家可以在日常的工作中从模仿到内化，慢慢变成自己的东西。
